HIGH PRESSURE STRUCTURAL POLYMER INJECTION



COVID-19 Compliant


Click to Read More

Case Studies
The Last Twenty Years
Commercial and Residential


Alt image
Stacks Image p62758_n198

Whale Coast Mall

Alt image
Stacks Image p62758_n205

Cape Gate Shopping Centre

Alt image
Stacks Image p62758_n212

Willowbridge Shopping Centre

Alt image
Stacks Image p62758_n219

Cavalli Estate

Alt image
Stacks Image p62758_n226

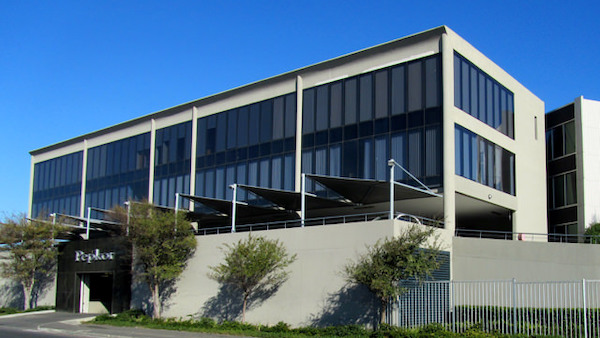

Rupert Museum Stellenbosch

Alt image
Stacks Image p62758_n233

ABSA Cape Town

Alt image
Stacks Image p62758_n240

Zevenwacht Mall

Injection Waterproofing Applications

Stacks Image 62669

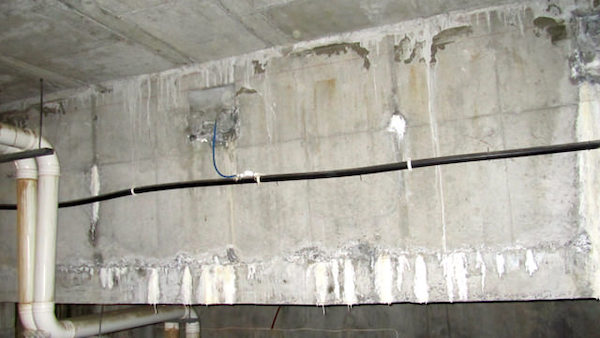

Underground Structures

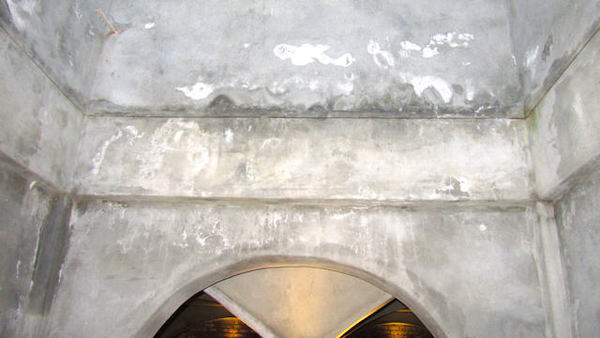

WINE CELLARS
BASEMENTS
LIFT SHAFTS
VALVE CHAMBERS

No need to excavate around your structure to re-apply or repair traditional membranes. Simply seal floors, retaining walls and joints with high-pressure chemical structural injection from the interior of the structure. Guaranteed.


Stacks Image 62918

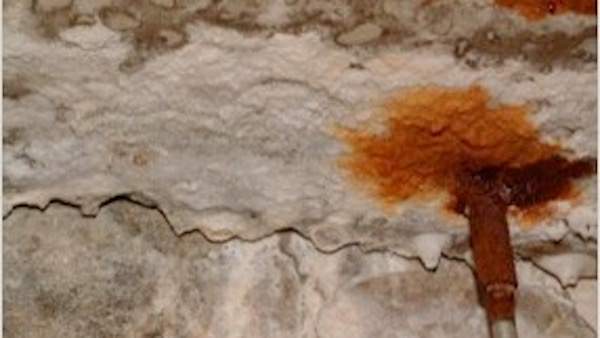

Cracks in Concrete

PARKING DECKS
COFFER CASTINGS
CONCRETE ROOF SLABS
RETAINER WALLS
CONCRETE COLUMNS

Structural repair and permanent water sealing of cracks and joints in concrete, made fast and permanent with high-pressure chemical injection waterproofing.


Stacks Image 62675

Retainer Walls

CONCRETE WALLS
REINFORCED CONCRETE WALLS
DOUBLE SKIN WALLS

Remedial injection waterproofing in walls, targeting cavities, honeycombing in casted concrete and cracks will prevent future water ingress into the core of the structure. That is without any structural changes.


Stacks Image 62931

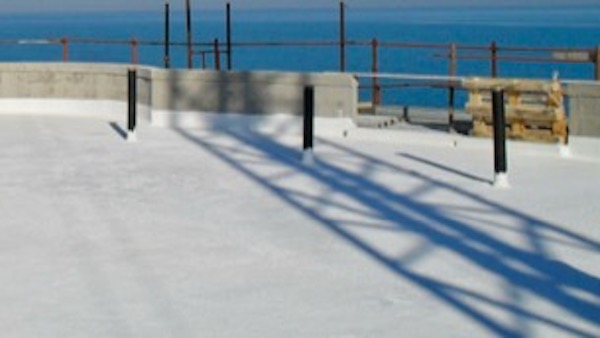

Roof Slabs

CONCRETE ROOF SLABS

As long as your torch-on membrane is still in reasonable condition, injection waterproofing will stop future water leakage problems, without replacing the existing membrane. Fast, effective and guaranteed.
Alternatively we shall replace the old membrane with a new Polyurea membrane.


Stacks Image 62912

Frames

WINDOW AND DOOR FRAMES
ALUMINIUM FRAMES
WOODEN FRAMES

Remedial injection waterproofing in walls, targeting cavities, honeycombing in casted concrete and cracks will prevent future water ingress into the core of the structure. That is without any structural changes.


Stacks Image 62937

Concrete & Tiled Decks

TILED PATIOS
PARKING DECKS
PAVED DECKS

Unless you would like to replace your tiles, a fast and effective injection waterproofing solution will take care of your water ingress problems without removing any tiles or pavers.


Stacks Image 62906

Joints

EXPANSION JOINTS
CONSTRUCTION JOINTS

Chemical injection sealing of expansion joints will prevent future water ingress into the core of the structure. Sub-soil joints easily treated from the interior of the building.


Stacks Image 62681

Cavity Walls

CAVITY SEALING
RISING DAMP

Cavity wall waterproofing is a two part process. Cavity will first be primed with Poly2Flex and then filled with closed cell SPF to fill the cavity and provide insulation.

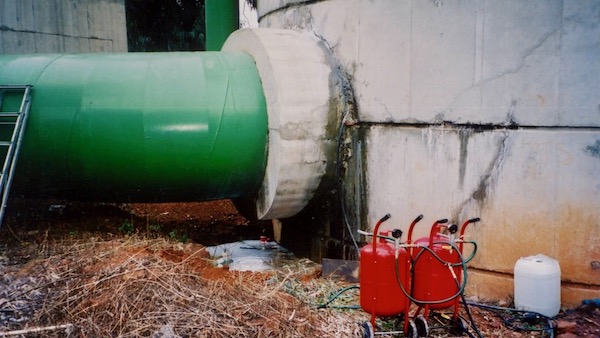

Silos

WATERPROOFING
GAS SEALING

Not only will we stop water ingress at small persistent areas, but we can also provide turnkey solutions for your water ingress in tunnels, round hoppers, through silo floors and walls. In addition to stopping water either above or below ground level, we can also pressure clean the interior of tubes to enable us to provide accurate pricing on repairs and internal gas sealing and waterproofing.

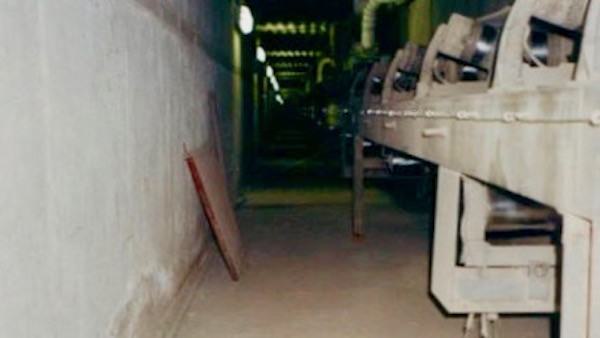

Before Injection Waterproofing

SENWES SILO

After Injection Waterproofing

SENWES SILO

Consultations and Quotes

Dry Environment = More Healthy Environment

Stacks Image p62954_n117
Stacks Image p62954_n123
Stacks Image p62954_n127

Videos

Loading…
Loading…

DEMONSTRATION


Loading…
Loading…

DEMONSTRATION


Loading…
Loading…

DEMONSTRATION


Loading…
Loading…

DEMONSTRATION


Benefits of Injection Waterproofing

Non-invasive - No need to chop tiles, break walls or excavate
Seamless membrane within the structure, blocking all porous areas and pathways
Particle size less than 1 Micron - extremely permeating
Saves cost due to the remarkable spread of Polymer grout - even at low injection pressure
Does not wash out during sealing - Stops leaks of 200 L/sec successfully
Exceptional performance under high pressure - successfully sealed static head of 20,000 kPa
Curing chemically controlled from several seconds to 48 hours
Seals saline and hypersaline water effectively
Remains flexible once solidified and will not re-leak with ground movement (400% elasticity.
- Reaction is not exothermic - no expansion effect
Environmentally friendly - non hazardous

Interestingly enough during this sealing exercise another area that had been water stricken some 110m above had also dried up and is no longer a problem


N Conley, Geotechnical Officer, De Beers (Finsch Mine)

Consultations and Quotes

Dry Environment = More Healthy Environment

On all of these occasions Liquid Waterproofing have been successful in effectively sealing these water intersections and allowed for the development of the haulages and crosscuts to continue in a timeous fashion


Adrian Colloty, Shaft Geologist Anglo Platinum (Amandelbult)

Polymer Chemical Injection Products

Poly2Flex

UltraC-P100

Poly2Flex can be classified as an emulsion grout. It is a patented polymer blend mixed with additives to promote flow and adhesion. It contains no toxic or hazardous materials other than 0.5% ammonia solution, which is present as a preservative but evaporates within minutes.

The reaction of Poly2Flex with water depends on the characteristics of the water, such as pH, salinity, mineral content, temperature etc.

The formulation of Poly2Flex can be varied to achieve the desired reaction with the specific water being treated. It is therefore essential to carry out tests with water from the area to be treated prior to finalising the formulation.

The rate of water flow as well as the texture of the flow area also influences the selection of the appropriate formulation of Poly2Flex.


High flows through large fissures or cracks require stability to achieve better penetration into the aquifer or crack before coagulation. Each case differs.

Poly2Flex can be used under very high pressures and are only limited by the grout pumps itself. Pressures of up to 50 Bar can easily be achieved.

Poly2Flex emulsion is also solidified with a chemical activator.


Poly2Flex can be used in wet or dry conditions.

DualFlex

HE-100

DualFlex is a dual component urethane and polymer based resin that reacts rapidly with equal proportions of water to form a flexible, impermeable foam with excellent adhesion to concrete and rock.


DualFlex is a low viscosity chemical grout primarily injected into the area of leakage, creating a mechanical and chemical bond, as well as a compression seal.

The cured resin is flexible and will resist degradation through thermal expansion and contraction, wet and dry cycles, and freeze and thaw cycles for long periods.

DualFlex is designed to fill and waterproof larger passages and honeycombing in structures and large cracks or joints in concrete

Excellent to fill and seal medium to large inaccessible areas in structures.


Stop infiltration through sewage systems,
storm and drain culverts, manholes, utility vaults, large-diameter pipe or similar structures.
Excellent for waterproofing in tunnels, elevator pits, dams, reservoirs, etc.



DualFlex can be used in wet or dry conditions.

Interestingly enough during this sealing exercise another area that had been water stricken some 110m above had also dried up and is no longer a problem


N Conley, Geotechnical Officer, De Beers (Finsch Mine)

Consultations and Quotes

Dry Environment = More Healthy Environment

On all of these occasions Liquid Waterproofing have been successful in effectively sealing these water intersections and allowed for the development of the haulages and crosscuts to continue in a timeous fashion


Adrian Colloty, Shaft Geologist Anglo Platinum (Amandelbult)

We've been


Leaders in modern technology solutions.
We've developed water-based polymer components to stop water in mines.
Twenty years ago.
Don't be misled.
Not all 'injection waterproofing systems' are equal.

Doing it for


Providing proven solutions for failed traditional waterproofing methods.
Addressing the sources of the ingress problem, the results can be far more accurate and measured.

Twenty years


Far less intrusive remedial solutions to existing water ingress.
Much quicker compared to alternative conventional waterproofing.

We've been
doing it for
twenty years

Leaders in modern technology solutions.
We've developed water-based polymer components to stop water in mines. Twenty years ago.
Don't be misled. Not all 'injection waterproofing systems' are equal.

Providing proven solutions for failed traditional waterproofing methods.
Addressing the sources of the ingress problem, the results can be far more accurate and measured.

Far less intrusive remedial solutions to existing water ingress.
Much quicker compared to alternative conventional waterproofing.
